RockyMars NF826 Underground Cable Wire Locator - Professional Cable Tester & Wire Tracker for Dog Fence Cables, Short Circuit Detection, and Wall Wiring - Perfect for Electricians, DIY Home Repairs, and Underground Utility Detection
Free shipping on all orders over $50
7-15 days international
24 people viewing this product right now!
30-day free returns
Secure checkout
59220607
Description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked. Previous page Next page Previous page Next page 1 Cables Inside the Wall 2 Underground Cables 3 Pet Fence Cables 4 Construction Site Cables Technical Parameters of Transmitter Output signal 125kHz External voltage DC 12-400V +/-2.5% Identification range AC 12-400V(50-60Hz) +/-2.5% Display LCD Screen 52*35mmTN screen with backlight External voltage Max. 400V AC/DC Dielectric strength CAT III 300V Overvoltage type 2 Power supply 3.7V 1400 mAh Lithium battary MIN curren 80mA MAX curren 300mA Fuse 0°C - 40 °C, with maximum relative humidity In work of 80% (non-condensation) In storage -20°C - 60°C,with maximum relative humidity Altitude 80% (non-condensation) Max. 2000m Dimensions (HxW*D) 156 x 80 x32 mm Weight 235g with battary Technical Parameters of Receiver Depth of tracking The depth of tracking depends on the material and specific applications Single pole application About 0-1m Dual-pole application About 0-0.5m Single loop line Up to 2.5m Grid voltage identification About 0-0.4m Display LCD Screen 52*35mmTN screen with backlight Power supply 3.7V 1400 mAh Lithium battary MIN current 100mA MAX current 300mA In work 0°C - 40°C,with maximum relative humidity of 80% (non-condensation) In storage -20°C - +60°C,with maximum relative humidity of 80% (non-condensation) Altitude Max. 2000m Dimensions (HxWxD) 226 x 73 x29 mm Weight 235g with battary
Features

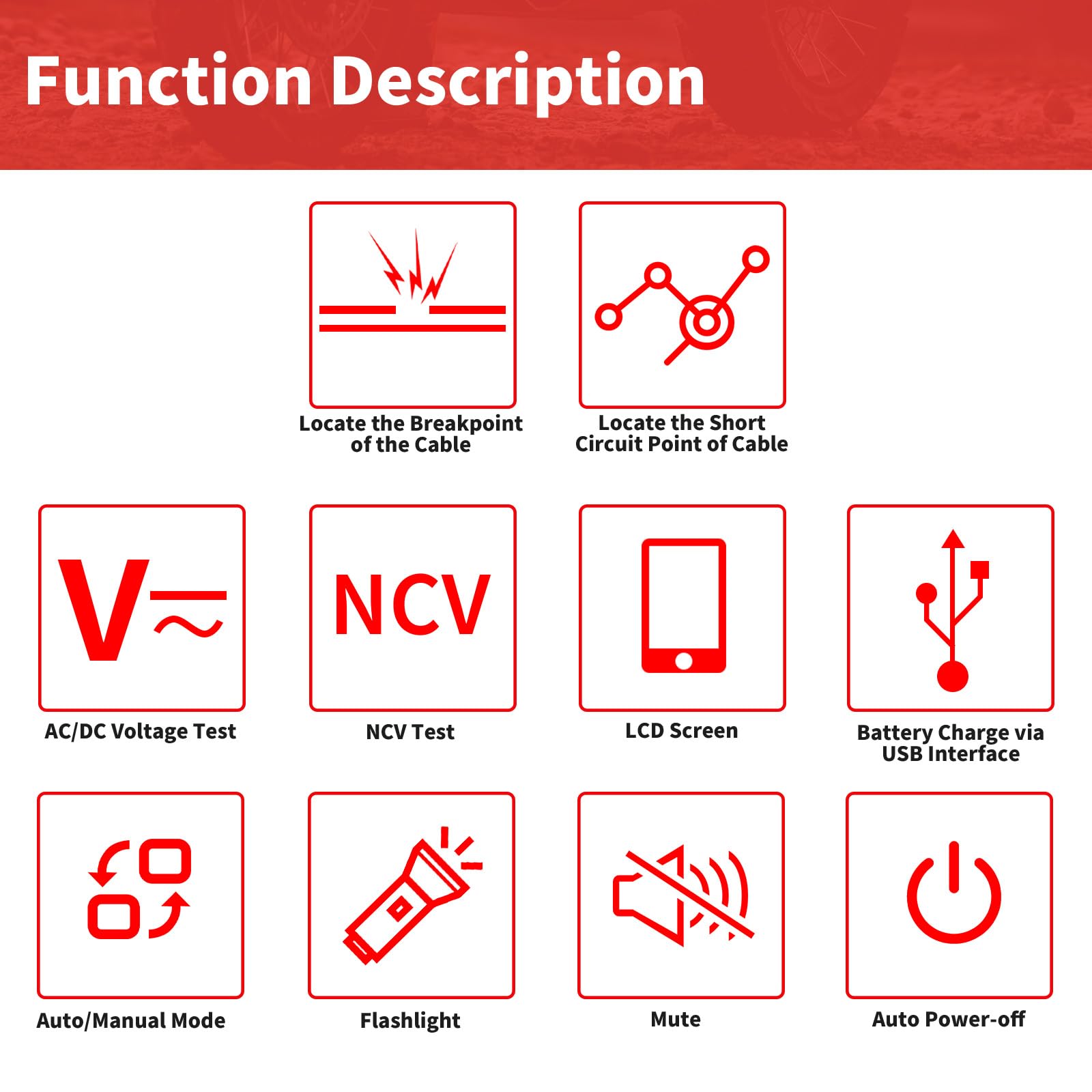

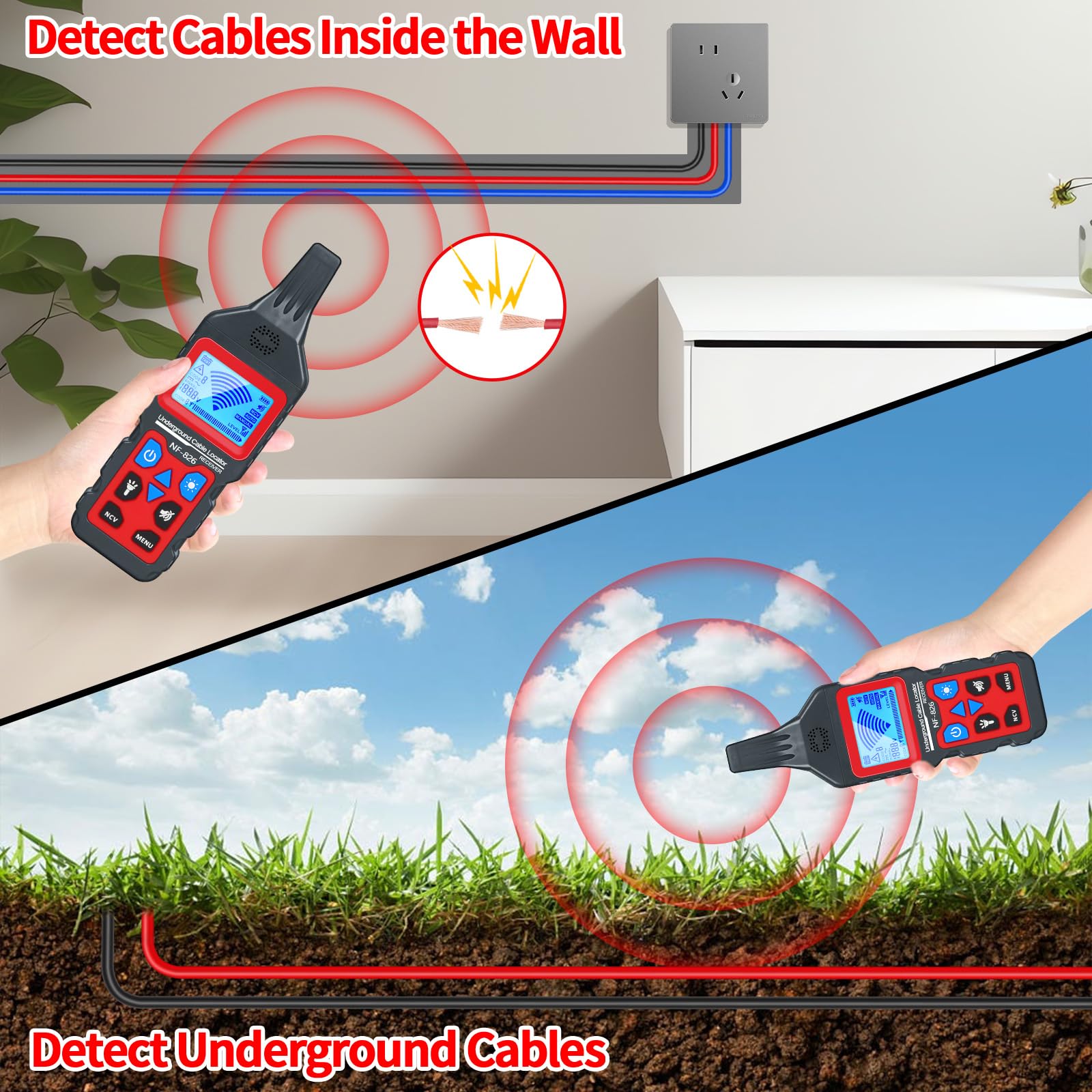

Functions The underground cable locator is designed to detect cables, electrical lines buried in walls or underground, as well as fuses and current circuits. It can also detect interruptions and short-circuits in cables and wires.

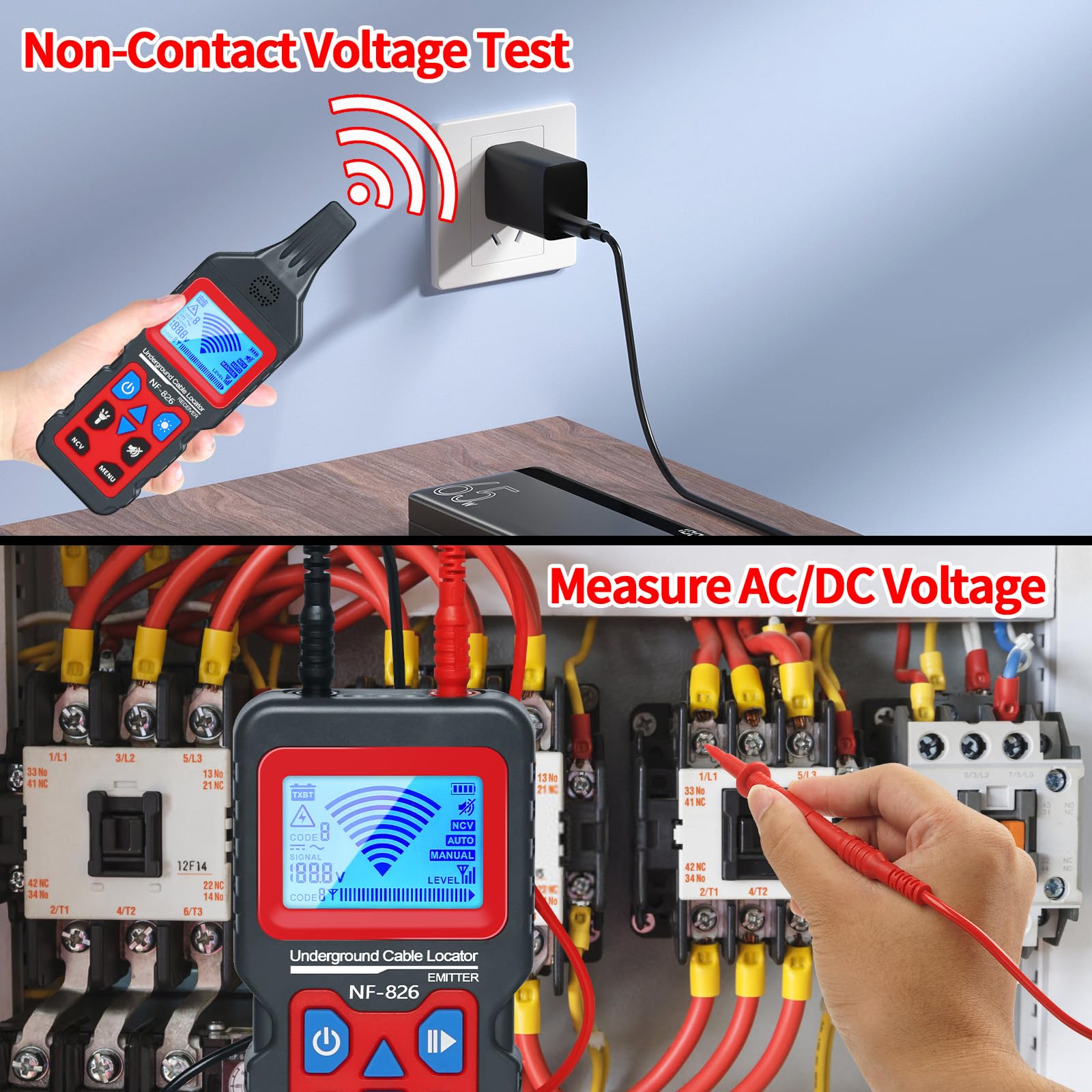

Measurement This underground wire locator features a built-in AC/DC voltmeter function, allowing for linear measurement of 12 to 400V AC/DC voltage. It has a wire tracer range of up to 3-4 feet in depth and 3000 feet in length.
Self-Inspection The transmitter includes a self-inspection function to detect its own working status, displaying it on the LCD screen for user reference.

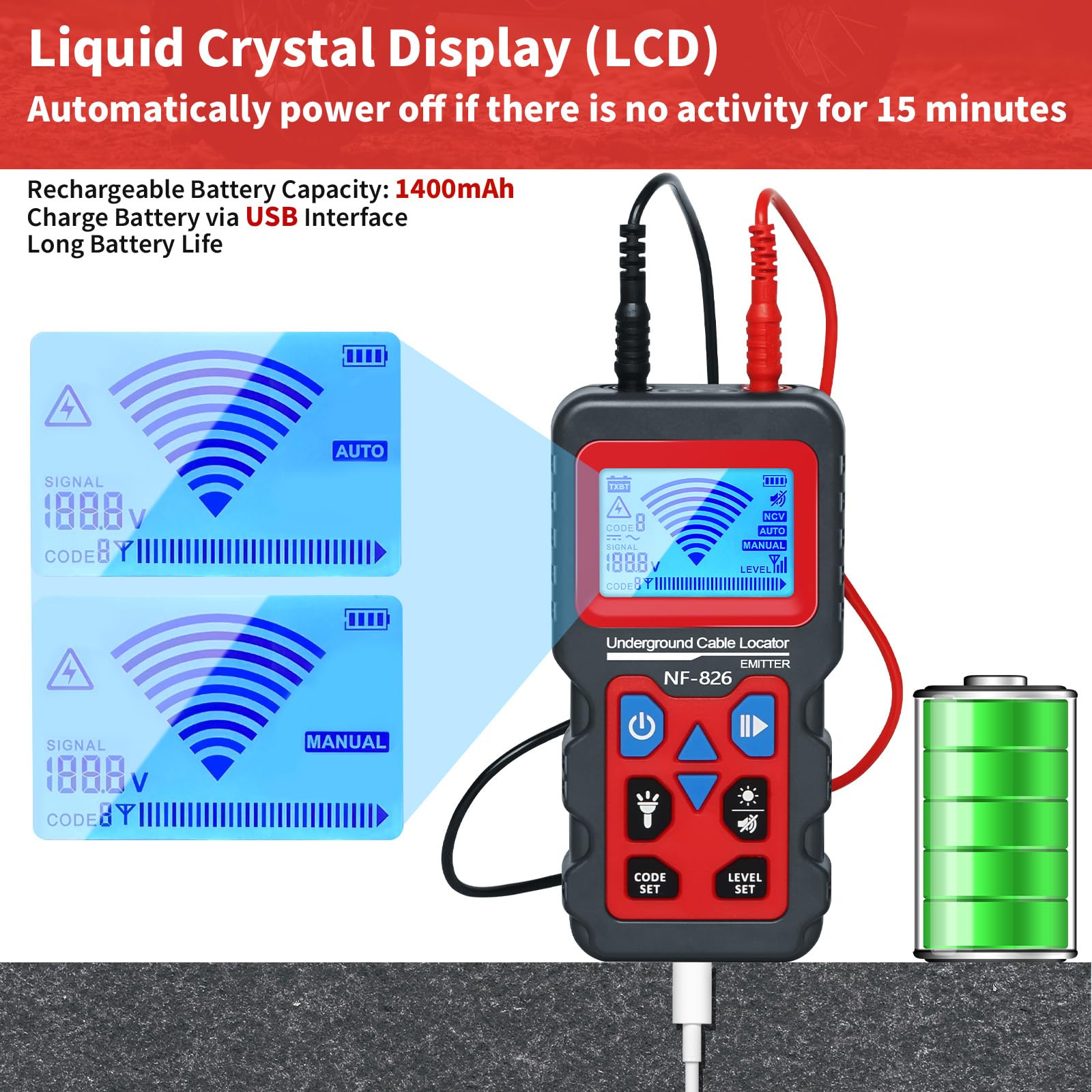

Display Both the transmitter and receiver display preset transmitting power, transmitted codes, battery energy levels, mains voltage detected, AC/DC status of mains voltage detected, and warning symbols for mains voltage. Both units can operate in mute mode.
Auto&Manual Mode The receiver sensitivity can be adjusted manually or automatically. The LCD screen of the locator is equipped with backlight for use in low light conditions and a flashlight for working in darkness.
Wide Application This buried wire locator is widely used in communication cable construction, power cable construction, and maintenance of communication cables, power supply lines, and electric heating lines. It is essential for maintenance personnel and households alike.
