BSL-GA55B 1200mm Draw Wire Displacement Sensor - Linear Motion Transducer for Industrial Automation (Mechanical Part Only, No Encoder) - Perfect for CNC Machines, Robotics & Position Measurement Systems

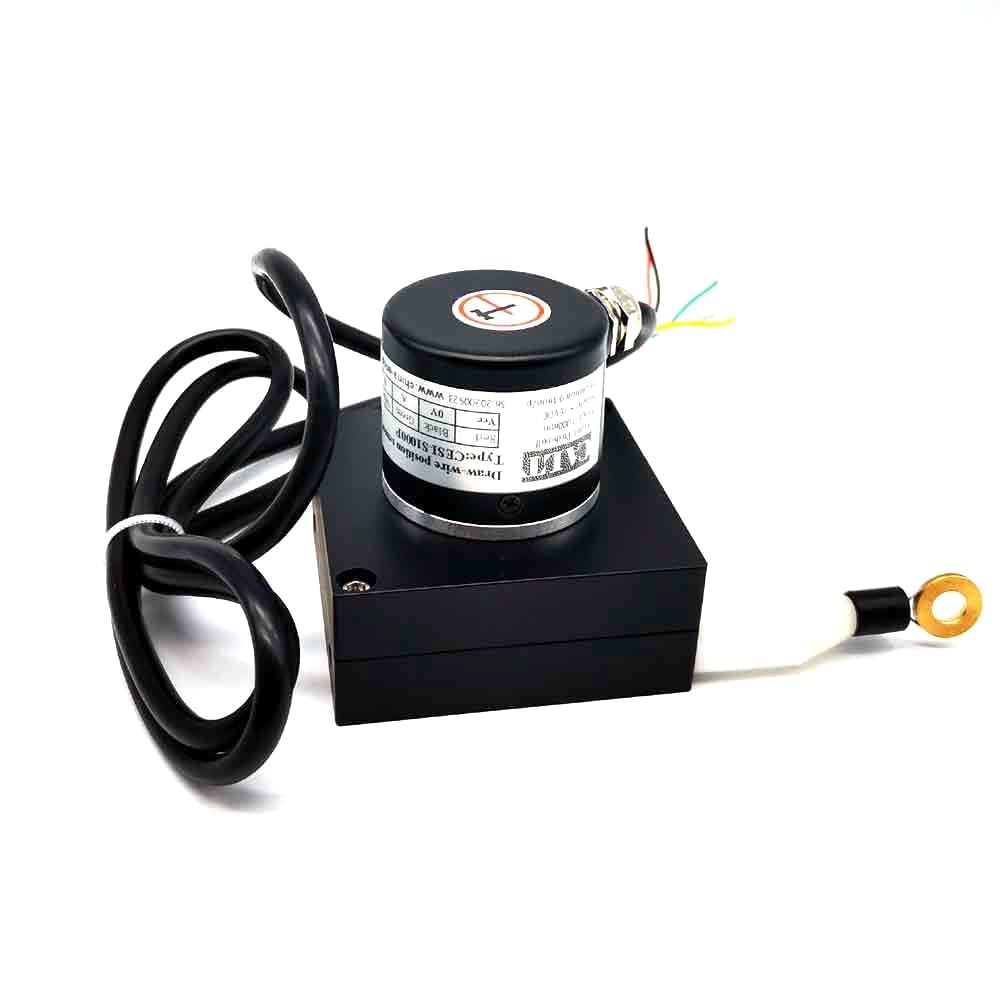

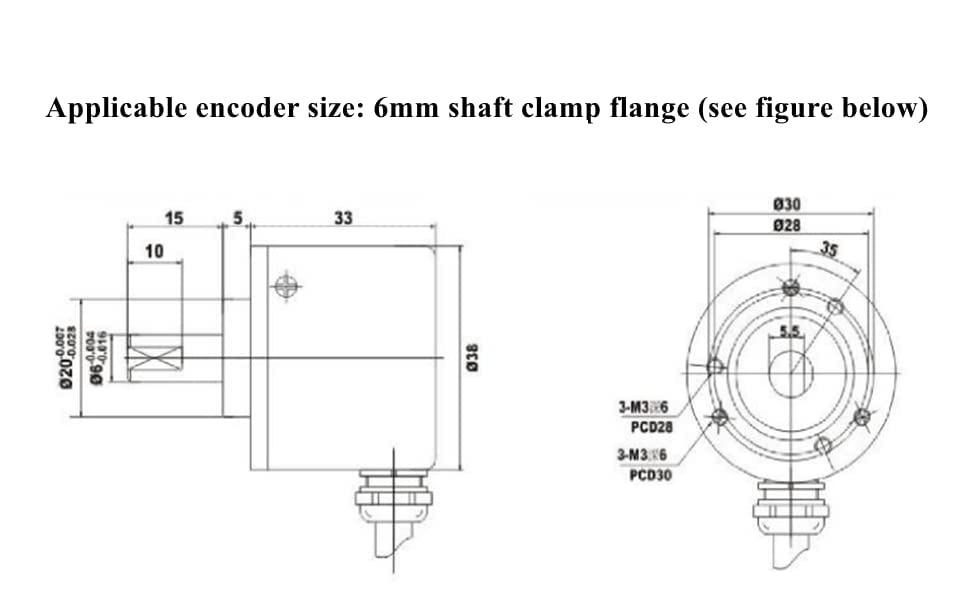

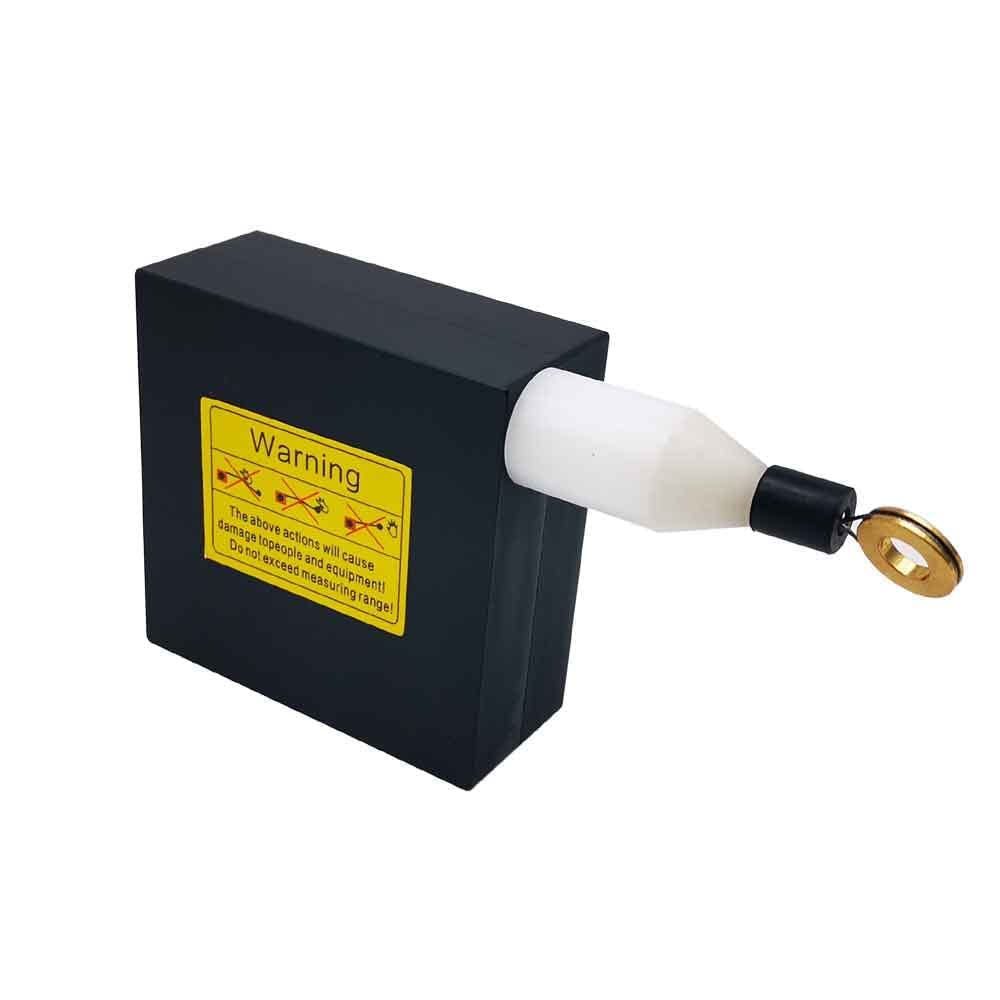

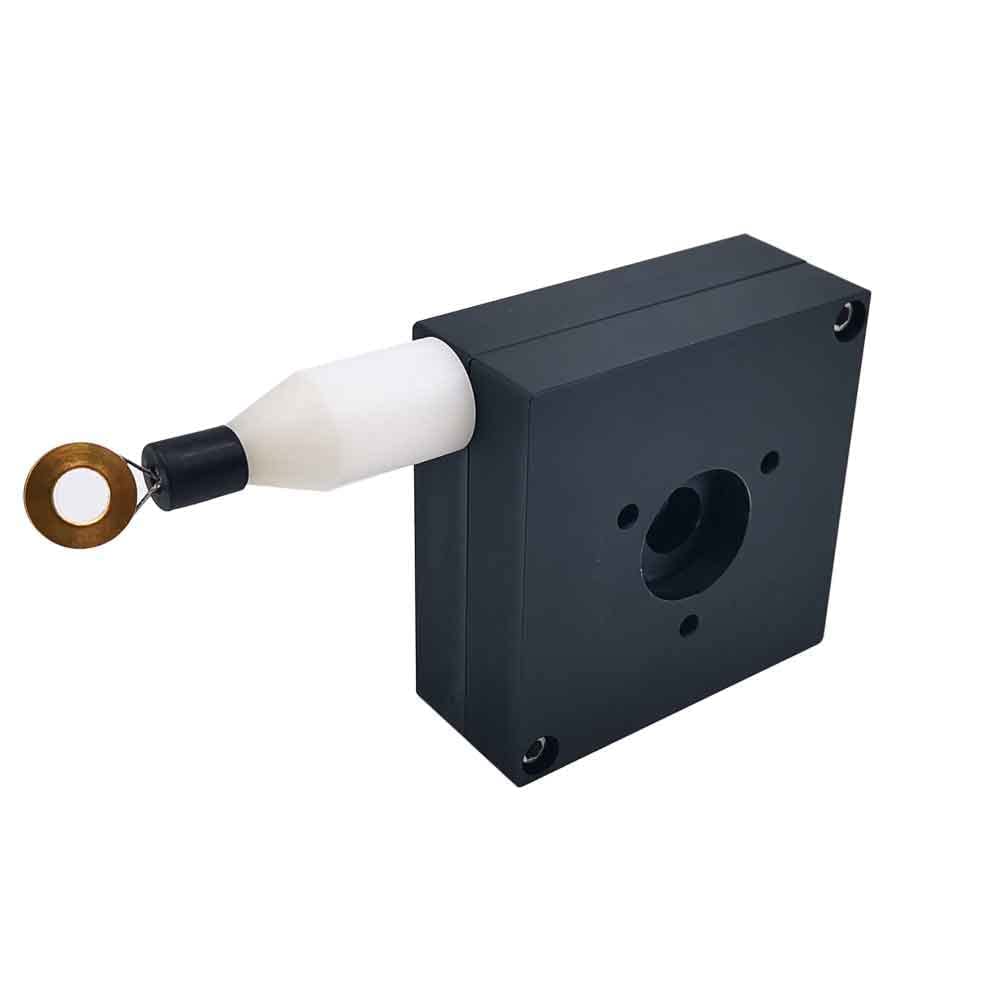

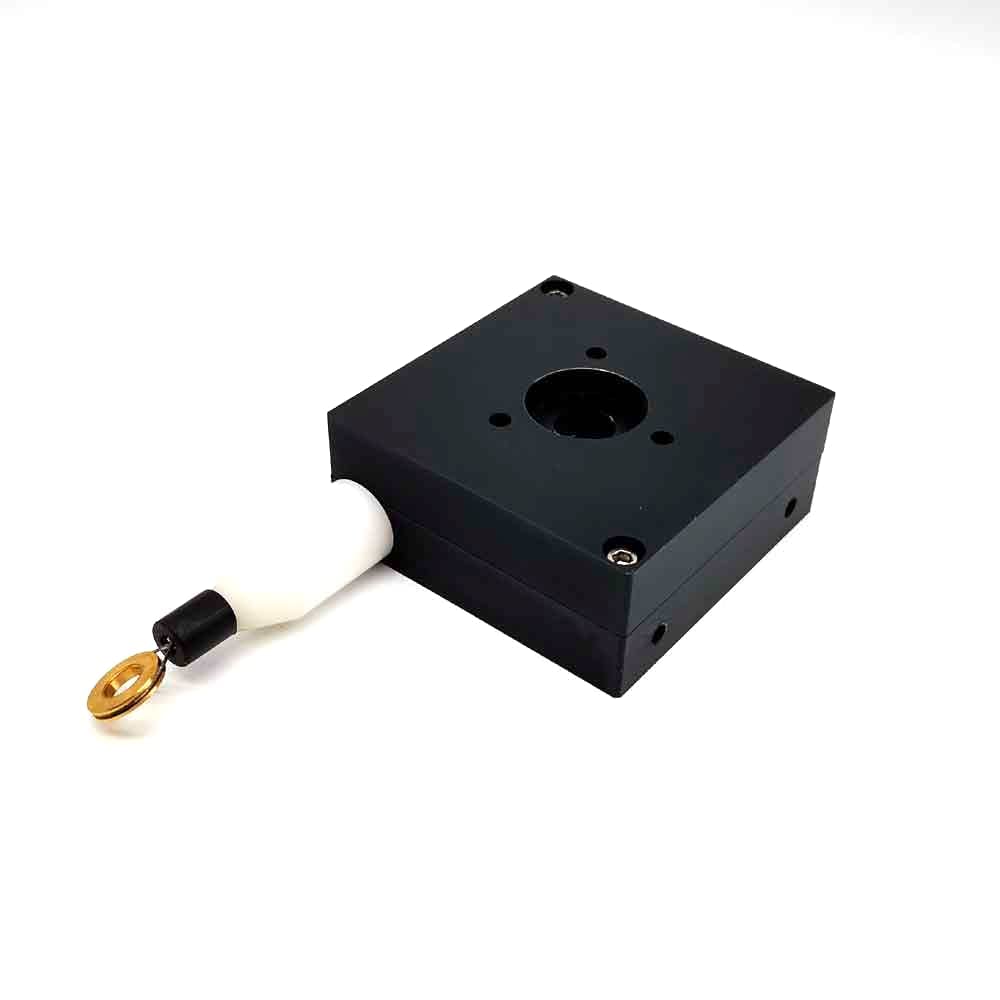

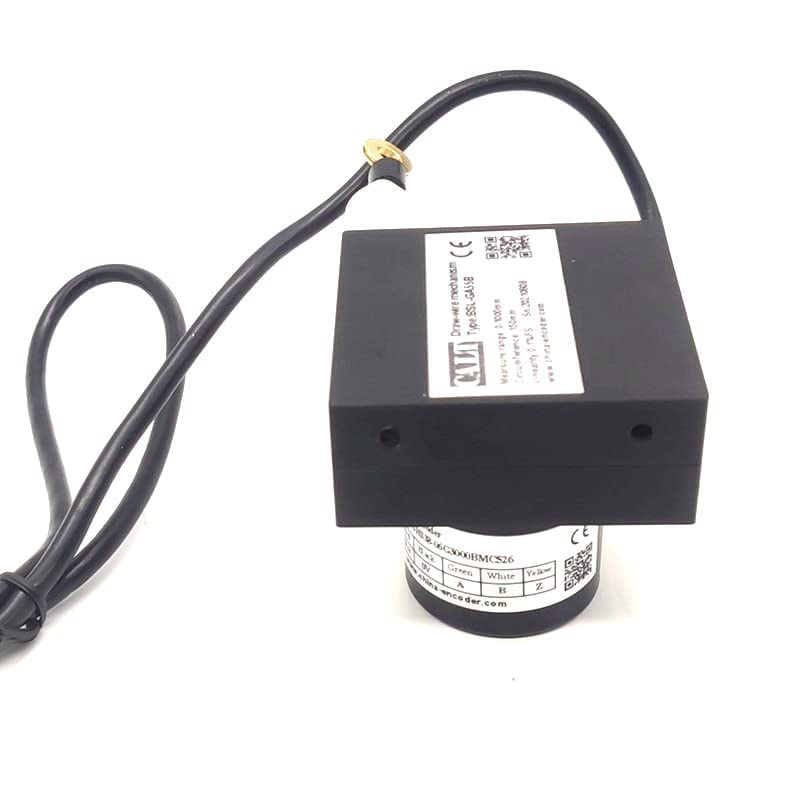

BSL-GA55B Linear Motion Transducer With GHS38 Encoder Matching GHS38 encoder Encoder Size: Outer diameter 38mm, Shaft 6mmEncoder Resolution: 1000 PPREncoder Output: NPN/PNP/Push-Pull/Line driverEncoder is made of aluminum alloy Encoder size for BSL-GA55B draw wire box BSL-GA55B Linear Motion Transducer (No Encoder) The measuring range of the pull line Sensor is 0-1.2m High flexibility 304 stainless steel wire pull ropeThe Box shell is made of aluminum alloyThe diameter of the pull rope is 0.5mm Repeatability ≤ 0.2 mm Linearity ≤ ± 2 mm Hysteresis ≤ 0.5 mm Weight 80 g (without encoder) Circumference of drum 150 mm Force of retractile spring 1 N ... 1.4 N 1) Acceleration 5 m/s² Resolution To determine the system resolution, use the following formula: Pull-out length of cable per circle / Steps per circle = Resolution of draw-wire encoder combination Working temperature –30 °C ... +70 °C IP code of casing IP50 life Typ. 5000,000 circle 2) 3) Annotation ·1) This value is measured at an ambient temperature of 25 °C. When the temperature changes, the value may deviate.. ·2) The average value depends on the load pattern. ·3) The service life depends on the type of load. Influencing factors include: environmental conditions, installation conditions, measuring range used, moving speed and acceleration.
